We explore advanced features, including bearingless designs, bore-mounted precision, rotor-mounted ease of installation, and versatile multi-passage configurations, unraveling the complexities of Deublin’s offerings.
Understanding Coolant Rotary Union: A Recap
Before delving into Deublin’s advanced offerings, let’s revisit the fundamental aspects of the Coolant Rotary Union. These mechanical devices facilitate the transfer of fluids, specifically coolant, between stationary and rotating components.
The seamless flow of coolant is crucial for dissipating heat generated during industrial processes, ensuring optimal performance, and the longevity of machinery.
Key Design Features:
Sealing Mechanism: Various sealing methods, such as mechanical seals, carbon seals, and o-rings, prevent leakage and ensure a reliable fluid transfer.
Material Selection: Materials like stainless steel, brass, and aluminium are chosen for durability and resistance to corrosion, depending on the application and environment.
Deublin’s Advanced Coolant Rotary Union:

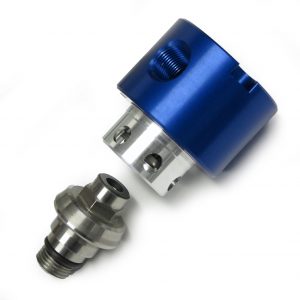

Bearingless Unions: Compact Design, High RPM
Deublin’s bearingless coolant Rotary Union stands out with its compact design, high RPM capabilities, and cost-effective solutions achieved through the elimination of traditional bearings. Notable series include:
- 1117 Series: Exemplifying innovation with a compact design and high-speed capabilities.

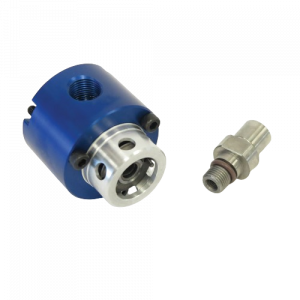

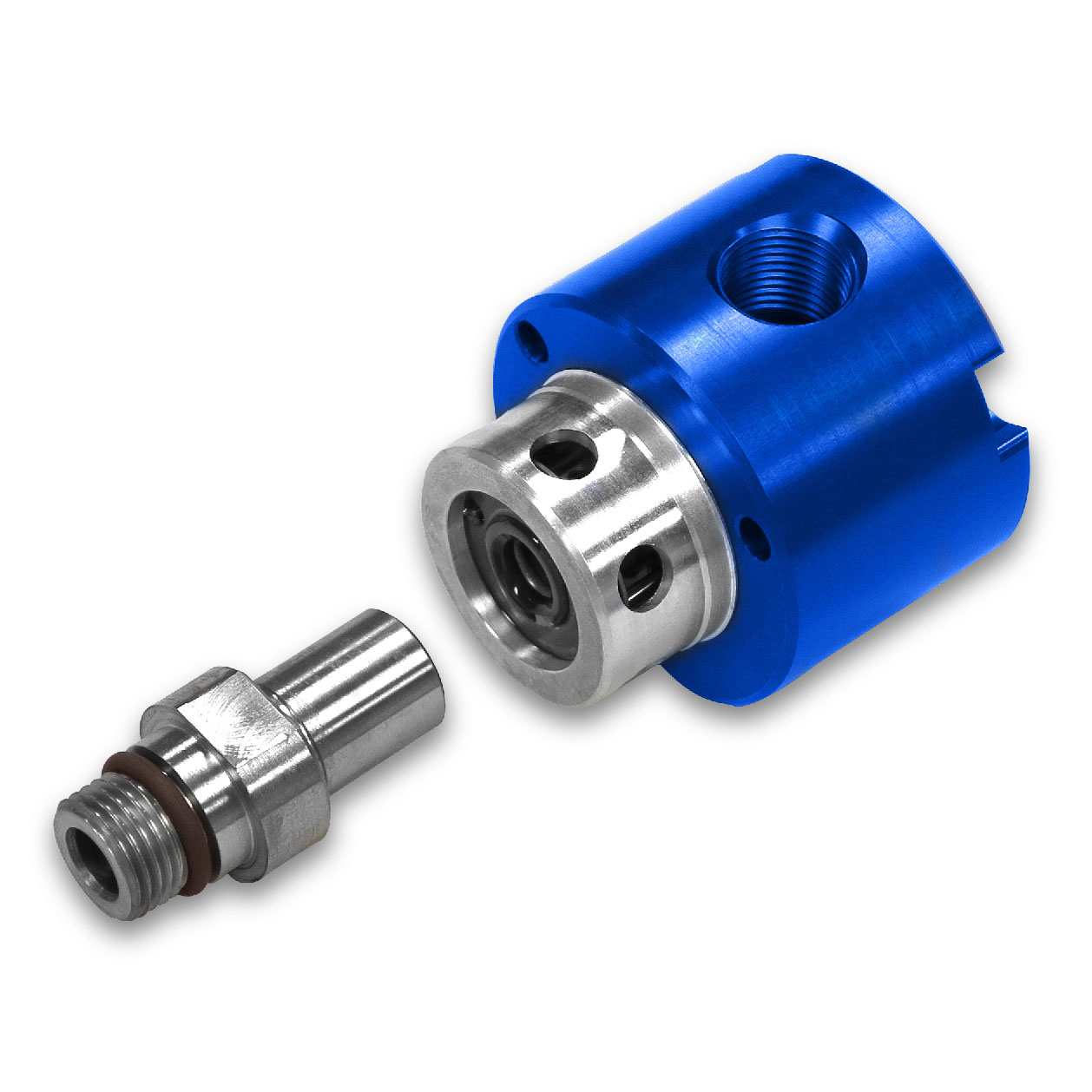

- 1121 Series: Efficient design eliminating bearings for cost-effective performance.
- 1124 Series: Pushing the boundaries with optimal coolant flow at high RPMs.
- 1139 Series: Ensuring performance and durability in diverse machining scenarios.
- 1154 and 1159 Series: Versatile offerings tailored for specific machining applications.
Bore-Mounted Unions: Precision in Machining
Deublin’s bore-mounted Rotary Unions cater to spindles with machined counter bores, providing efficient cooling without the risk of flooding. Noteworthy series include:
- 1109 Series: Tailored for spindles with machined counter bores, ensuring precision in machining.
- 1111 Series: Precision-centric bore-mounted unions designed for specific machining needs.
- 1114 Series: Combining reliability and precision in a seamless package.
Rotor-Mounted Unions: Ease of Installation, Thrust Load Absorption
Rotor-mounted unions simplify installation and absorb thrust loads critical for machining scenarios. Series include:
- 1005 Series: Rotor-mounted design for ease of installation and efficient coolant flow.
- 1101 Series: Effectively managing thrust loads generated by coolant pressure.
- 1109 Series (Rotor-Mounted): Versatile solutions for different machining center configurations.
Multi-Passage Unions: Versatility in Application
Deublin’s multi-passage Rotary Unions, equipped with balanced mechanical seals, handle high speeds and diverse application needs and cater to a variety of application needs, including work holding requiring 1 to 8 channels.
Benefits of Deublin’s Coolant Rotary Union
- Enhanced Tool Life: Efficient heat dissipation extends the lifespan of cutting tools, reducing wear.
- Improved Machining Quality: Uniform coolant flow prevents thermal distortion, contributing to high-quality machined components.
- Increased Productivity: Uninterrupted operations minimize downtime, enhancing overall productivity. You can learn more about it by talking to our product managers.
Frequently Asked Questions
What is a Coolant Rotary Union, and why is it essential in industrial applications?
A Coolant Rotary Union facilitates fluid transfer, specifically coolant, between stationary and rotating components, crucial for dissipating heat and ensuring optimal machinery performance.
How does a Coolant Rotary Union work?
Coolant is supplied through the inlet port, transferred to the rotating component via internal channels, and returns through the outlet port, creating a continuous fluid circulation loop.
What are the key design features of Coolant Rotary Union?
Key features include advanced sealing mechanisms (mechanical seals, carbon seals, o-rings) and material selection for durability and corrosion resistance.
What sets Deublin’s Coolant Rotary Union apart from traditional designs?
Deublin’s offerings go beyond traditional designs with advanced features, including bearingless designs, bore-mounted precision, rotor-mounted ease of installation, and versatile multi-passage configurations.
What is the significance of bearingless Coolant Rotary Union?
Bearingless unions have a compact design and high RPM capabilities due to the elimination of traditional bearings, contributing to increased efficiency.
Can you highlight some of Deublin’s series of Coolant Rotary Union?
Deublin offers a range of series, including bearingless, bore-mounted, rotor-mounted, and multi-passage variants, each tailored for specific machining applications.
What benefits does Deublin’s Coolant Rotary Union bring to industrial processes?
Benefits include enhanced tool life, improved machining quality, and increased productivity through uninterrupted operations and minimized downtime.
How does bore-mounted Coolant Rotary Union enhance precision in machining?
Bore-mounted unions, like the 1109 and 1111 series, are designed for spindles with machined counter bores, providing efficient cooling without flooding, and ensuring precision.
What applications are suitable for Deublin’s rotor-mounted Coolant Rotary Union?
Rotor-mounted unions, such as the 1005, 1101, and 1109 series, are suitable for applications where ease of installation and absorption of thrust loads are critical.
How do multi-passage Coolant Rotary Union address application needs?
Multi-passage unions, designed with balanced mechanical seals, handle high speeds and diverse application needs, particularly useful for work holding requiring 1 to 8 channels.
Are Deublin’s Coolant Rotary Union customizable for specific industrial requirements?
Yes, Deublin offers multiple configurations for off-the-shelf Rotary Unions to fit various machining applications, providing versatility and flexibility.
How can industries benefit from incorporating Deublin’s Coolant Rotary Union into their machinery?
Industries benefit from enhanced tool life, improved machining quality, and increased productivity. These advanced unions contribute to cost savings in maintenance and provide tailored solutions for evolving industrial needs.
Conclusion
In conclusion, understanding the intricacies of Coolant Rotary Union, especially those from Deublin with their advanced features, can significantly impact the efficiency and reliability of industrial processes. If you have further questions or specific requirements, don’t hesitate to reach out to our experts for tailored solutions.
