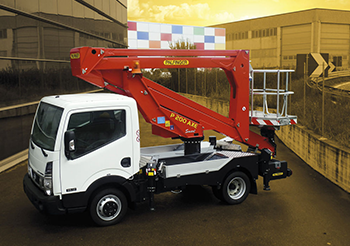

Articulating P200A

Thanks to its compact structure with a short wheelbase, the P 200 A smart is particularly suitable for use in city centres. Wherever there is insufficient space to position the vehicle, the advantages of the small, clever truck access platform become patently clear. The joint/telescope combination allows for amazingly flexible height access. Easy operation, ergonomic design, fully hydraulic processes and professional Palfinger quality ensure safety for working at height and provide outstanding guarantees for jobs in the field performed high up.

    Specifications:
  • Max. height of work: 19.8 m
  • Max. basket floor height: 17.8 m
  • Max. horizontal outreach /with basket load: 8.4 m
  • max. basket load: 230 kg
  • Workman basket - breadth / length / height 1.4 x 0.85 x 1.1 m
  • Angle of main boom: -25° - +80°
  • Rotation angle of turntable: 370°
  • Height in transport position: 2.89 m
  • Width in transport position: 2.10 m
  • Length in transport position: 5.39 m
  • Overall weight : 3320 kg
