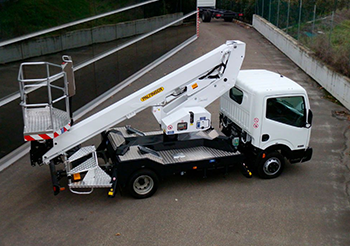

Telescopic P170T

The Palfinger Telescopic P170T lifting crane is a high-performing, compact device, perfect for working on high altitudes. It provides complete safety for workmen and is easy to use and operate.

Specifications:
• Max. height of work: 17 m
• Max. basket floor height: 15 m
• Max. horizontal outreach /with basket load: 10.8
• Slewing range of basket: 2 x 90°
• max. basket load: 230 kg
• Workman basket - breadth / length / height 1.4 x 0.85 x 1.1 m
• Height in transport position: 2.89 m
• Width in transport position: 2.10 m
• Overall length: 6.1 m
• Overall weight: 3200 kg
